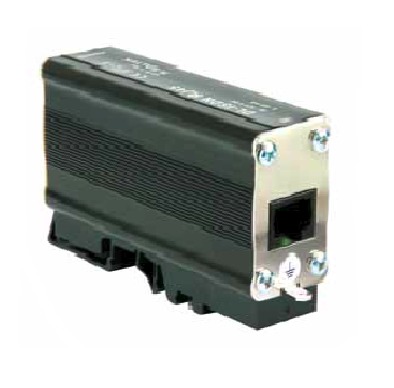

DL-100 POE24 Surge Arrester for Ethernet CAT5 temninals RJ45

Technical data

DL-100 POE 24

DL-100 POE 48

Location SPD

ST 2+3

ST 2+3

Maximum operating voltage Uc

8,1 V DC / 5,7 V AC

8,1 V DC / 5,7 V AC

Nominal current IL

100 mA

100 mA

C2 nominal discharge current (8/20 μs) per line In

5 kA

5 kA

C2 voltage protection level line – line at In Up

300 V

300 V

C2 voltage protection level line – PE at In Up

340 V

340 V

C3 voltage protection level line – line at 1 kV/μs Up

55 V

55 V

C3 voltage protection level line – PE at 1 kV/μs Up

530 V

530 V

Series resistance per line R

1 Ω

1 Ω

Insertion attenuation at 100 MHz

1,5 dB

1,5 dB

Response time line - line ta

1 ns

1 ns

Response time line - PE ta

100 ns

100 ns

Degree of protection

IP 20

IP 20

Range of operating temperatures

-40 °C ... +80 °C

-40 °C ... +80 °C

Mounting on

surface on the desk

surface on the desk

Cross-section of connected conductors

Solid max

Stranded max

ISO: 4 mm2 ; AWG: 11

ISO: 2,5 mm2 ; AWG: 13

ISO: 4 mm2 ; AWG: 11

ISO: 2,5 mm2 ; AWG: 13

Connection input - output

teminals / RJ45

teminals / RJ45

Tightening torque

max. 0,6 Nm

0,6 Nm
