Advanced ESE lightning conductor for 188m protection radius

Product Description

SPECIFICATIONS OF LAPPEX220 ADVANCED ESE PIEZOELECTRIC TYPE

LIGHTNING PROTECTION SYSTEM

 Complete Lightning Protection System consists of following

Piezoelectric Type ESE Early Streamer Emission Air Terminal

Elevation Shaft  mast for raising Air terminal minimum 2m above the top of the structure to be protected Ideally lightning air terminal should be installed at 4m height above the structure to be protected so that complete protection radius capacity of air terminal can be utilized

Down conductor

Lightning counter

Earthing

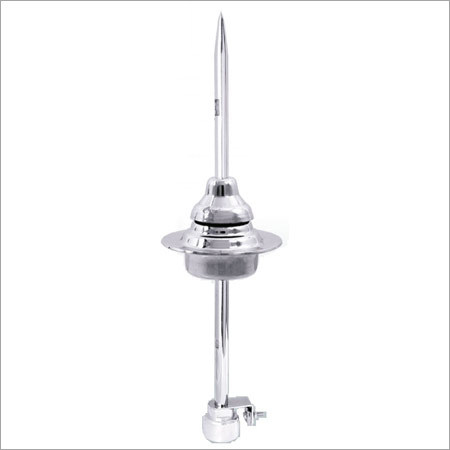

 LAPPEX220 ADVANCED ESE PIEZOELECTRIC TYPE AIR TERMINAL  LIGHTNING CONDUCTOR

1 Stainless steel material body 1500mm long and 15 Kg nett weight with pointed tip

2 Based on Active Early Streamer Emission principle and consists of Ion Generator

3 High early streamer warning time of 136 micro sec

4 Provides protection radius of 188m in Level IV area  176in Level III area 164m in Level II area 155m in Level I at 4m height as per latest NFC 17102 2011 standard

5 METU Electrical  Electronics test report as per NFC 17102 standard

7 In each lightning conductor Serial number model no CE mark hologram  OEM name is printed

8 Every lightning conductor carries 30 years warranty

9 Internal last inspection report of manufacturer will be provided with every serial numbered lightning arrester if  required

10 Sigma test report

11 Temperature withstand test of 40 degree C to 125 C degree C

12 QA technic conformity certificate

13 TS EN ISO 90012008 certificate

14 BS EN ISO 140012004 certificate

15 Certificate of registration from World Intellectual Property Organisation

16 CE certification

17 Testable by means of external tester

18 Designed as per NFC17102 standard

17 Suitable for all types of lightning discharges

19 Suitable for all whether and climatic conditions and can be used in any terrain

20 No use of battery or power source is required

Elevation Rod The Advance lightning conductor height may be increased by means of an elevation rod of GI  SS FRP with GIAluminium

The lightning conductor tip should be at least 2 meters higher than the highest point of the building that it protects including antenna cooling towers roofs tanks etc

The Down conductor is attached to the Advance Lightning conductor by a connecting system located on the support rod This connecting system consists of suitable mechanical devices providing longlasting contact The Down conductor should comply with the data as below

Down Conductor

Material

Remarks

Minimum Dimensions

BareTin  plated electrolytic Copper

Recommended for its good conductivity and corrosion resistance

Strip 30 x 2mmRound section 8mm Dia

1810304 stainless steel

Recommended in certain corrosive environments

Strip 30 x 2mmRound section 8mm Dia

A 5L

To be used on aluminum surfaces cladding curtain walls

Strip 30 x 3mmRound section 10mm Dia

 When Advance lightning conductors protect open areas such as playing fields golf courses swimming pools camping sites etc they should be installed on specific supports such as lightning poles pylons or any other nearby structures which enables in Advance lightning conductor to cover the maximum area to be protected
