LIGHTNING PROTECTION SYSTEM FOR 130M RADIUS OF PROTECTION

Product Description

LIGHTNING PROTECTION SYSTEM FOR 130M PROTECTION RADIUS

SABO LIVA LAP AX210 lightning conductor provides protection radius of 130m at 4m height in Level III area and 136m at 20m height in Level III area

Suitable for all types of structure like microwave tower buildings chimneys temples mosques archaeological buildings monuments high mast etc

Lightning Protection System consists of following

Active ESE Early Streamer Emission Air Terminal SABO LIVA LAP AX210

Shaft GI  FRP  SS for raising Air terminal minimum 3m above the top of the structure to be protected

Down conductor  302mm copper strip

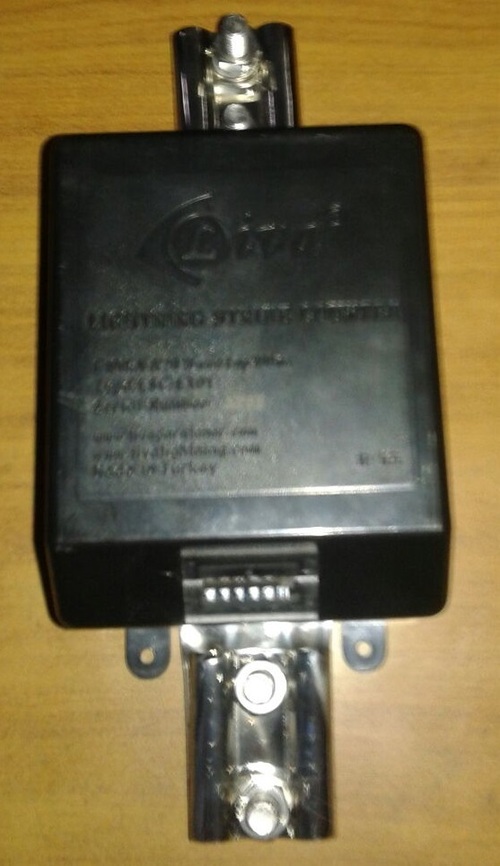

Lightning counter of 6 digits IP65

Test clamp for disconnecting the down conductor and testing the earthing

Earthing should be Maintenance free tripod type of copper bonded steel rod

Specifications of the lightning conductor LAP AX210

1 Very high grade Stainless steel material body 1000mm long and 50 Kg nett weight with pointed tip

2 Based on Active Early Streamer Emission principle and consists of Ion Generator

3 Early streamer warning time of 82  sec

4 Protection radius at 4m height in Level I II and III area is 100m 120m and 130m respectively

5 METU Electrical  Electronics test report as per NFC 17102 standard

7 In each lightning conductor Serial number model no CE mark hologram  manufacturer name is available Packed inside printed carton for each piece

8 Every lightning conductor carry 30 years warranty Certificate is issued from the manufacturer

9 Internal last inspection report of manufacturer will be provided with every serial numbered lightning arrester if required

10 Sigma test report

11 QA technic conformity certificate

12 TS EN ISO 90012008 certificate

13 BS EN ISO 140012004 certificate

14 Certificate of registration from World Intellectual Property Organisation

15 CE certification

16 Testable by means of external tester LLTX2A

17 Designed as per NFC17102 standard which meets all lightning conductor standards

18 Suitable for all types of lightning discharges negative positive or lateral

19 Suitable for all whether and climatic conditions and can be used in any terrain

20 No use of battery or power source is required

21 Tested for 115KA short circuit in HV test lab triggering time and temperature 40 C to 120  C
